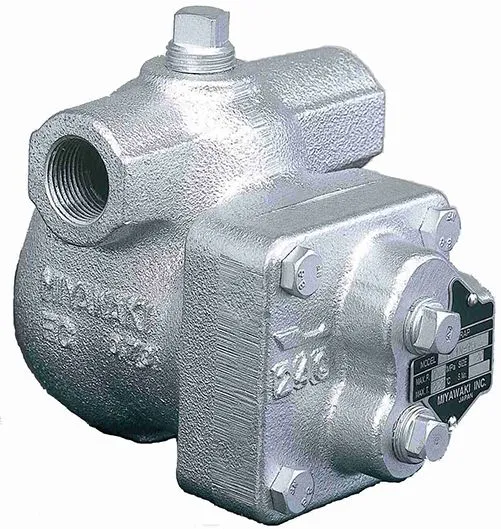

Конденсатоотводчики Miyawaki G11N
Арт. G11N
Характеристики
Рабочее давление, бар
—
1,6MPa
Рабочая температура, °C
—
220℃
Макс. Разрядная емкость
—
710kg/h
Connection
—
Screwed Rc,NPT
Конденсатоотводчики Miyawaki G11N
Арт. G11N
Model | Connection |
Max. operating pressure |
Max. operating differential pressure |
Max. operating temperature |
Body material | ||||
Type | Size | PMO (MPa) | PMO (psig) | ⊿PMX (MPa) | ⊿PMX (psig) | TMO (℃) | TMO (℉) | ||
G11N-2 |
Screwed Rc,NPT |
1/2” | 0,2 | 29 | 0,2 | 29 | 220 | 428 |
Cast iron FC250 |
3/4” | |||||||||
G11N-8 | 1/2” | 0,8 | 116 | 0,8 | 116 | ||||
3/4” | |||||||||
G11N-16 | 1/2” | 1,6 | 230 | 1,6 | 230 | ||||
3/4” |
●Maximum allowable pressure (PMA): 1,6MPa (230psig) PMA is the pressure that can be tolerated by pressure-resistant parts (body).
●Maximum allowable temperature (TMA): 220℃ (428℉) TMA is the temperature that can be tolerated by pressure-resistant parts (body).
●Minimum operating differential pressure (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.
