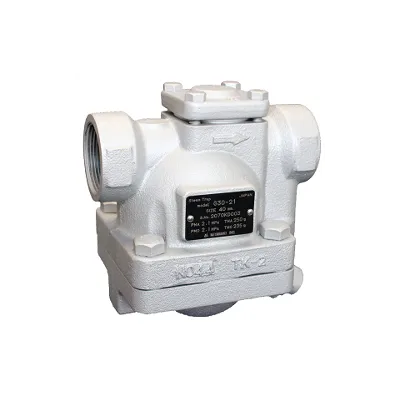

The Steam Trap Miyawaki G30 ensures efficient condensate removal in high-pressure steam systems, optimizing energy efficiency and system reliability. This steam trap is built for long-term performance in industrial applications, reducing energy waste and enhancing overall system operation.
Why Trust Veža Equipment for Steam Trap Solutions?
At Veža Equipment, we provide high-quality steam system components designed to enhance system efficiency and reliability. Our expert team is here to assist you in finding the right steam trap solutions for your needs. With fast shipping and expert support, Veža Equipment is your trusted partner for industrial steam solutions.
Connections | Size | Dimensions(mm) | Dimensions(in.) | Weight | |||||||
L | H1 | H2 | W | L | H1 | H2 | W | kg | lb | ||
Screwed (Rc) |
1" | 155 | 44 | 125 | 118 | 6.1 | 1.7 | 4.9 | 4.6 | 6,5 | 14.3 |
1¼" | 160 | 6.3 | |||||||||
1½" | 6,3 | 13.9 | |||||||||
Screwed (NPT) |
1" | 160 | 44 | 125 | 118 | 6.3 | 1.7 | 4.9 | 4.6 | 6,6 | 14.5 |
1¼" | 165 | 6.5 | 6,5 | 14.3 | |||||||
1½" | 6,3 |
13.9 |
Model |
Max. Allowable Pressure |
Max. Allowable Temperature |
Max. Operating Pressure |
Max. OperatiMax.ng Temperature |
Body Material | ||||
PMA (MPa) |
PMA (psig) |
TMA (℃) |
TMA (℉) | PMO (MPa) | PMO (psig) |
TMO (℃) |
TMO (℉) | ||
G30-2 | 2,1 | 305 | 250 | 482 | 0,2 | 29 | 235 | 455 |
Ductile Cast Iron FCD450 |
G30-6 | 0,6 | 87 | |||||||
G30-10 | 1,0 | 145 | |||||||
G30-21 | 2.1 | 305 |
●Maximum allowable pressure (PMA): 2,1MPa (305psig) PMA is the pressure that can be tolerated by pressure-resistant parts (body).
●Maximum allowable temperature (TMA): 250℃ (482℉) TMA is the temperature that can be tolerated by pressure-resistant parts (body).
●Maximum operating back pressure (PMOB): 90% of inlet-side pressure
