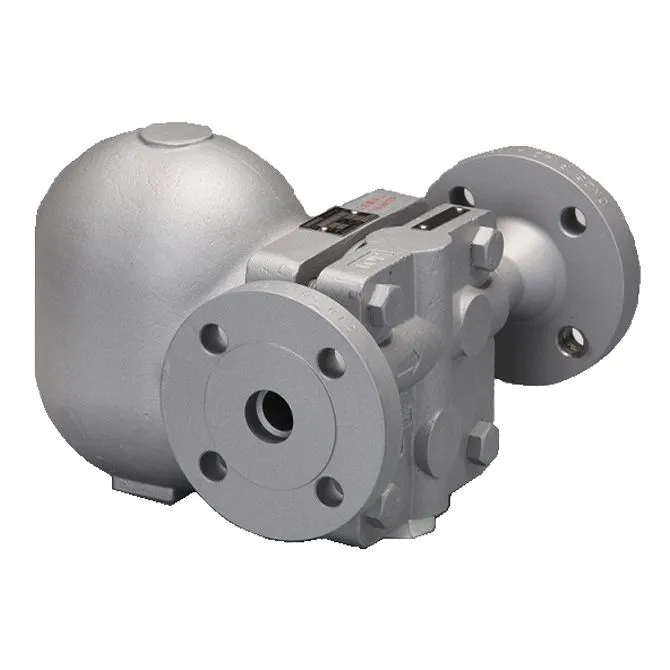

The Steam Trap Miyawaki GTH12 is designed for high-efficiency condensate removal, optimizing energy use and enhancing system performance in steam systems. This durable steam trap provides long-term reliability in demanding industrial applications, ensuring energy savings and system reliability.
Why Trust Veža Equipment for Your Steam Trap Needs?
At Veža Equipment, we offer high-performance steam system components designed to optimize energy efficiency and ensure reliable performance. Our expert team is here to help you find the best solutions for your steam system. With fast shipping and reliable customer support, Veža Equipment is your trusted partner for industrial steam solutions.
| Model | Connection |
Max. operating pressure |
Max. operating differential pressure |
Max. operating temperature |
Body material |
||||
| Type | Size | PMO(MPa) | PMO(psig) | ⊿PMX(MPa) | ⊿PMX(psig) | TMO(℃) | TMO(℉) | ||
| GTH12-5F |
Flanged FF,RF |
1/2” | 3,2 | 464 | 0,5 | 73 | 400 | 752 |
Cast steel SCPH2 |
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-16F | 1/2” | 1,6 | 230 | ||||||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-25F | 1/2” | 2,5 | 363 | ||||||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-32F | 1/2” | 3,2 | 464 | ||||||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-45F | 1/2” | 5,0 | 725 | 4,5 | 652 | 425 | 800 | ||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-5W |
Socket Weld SW |
1/2” | 3,2 | 464 | 0,5 | 73 | 400 | 752 | |
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-16W | 1/2” | 1,6 | 230 | ||||||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-25W | 1/2” | 2,5 | 363 | ||||||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-32W | 1/2” | 3,2 | 464 | ||||||
| 3/4” | |||||||||
| 1” | |||||||||
| GTH12-45W | 1/2” | 5,0 | 725 | 4,5 | 652 | 425 | 800 | ||
| 3/4” | |||||||||
| 1” | |||||||||
●Maximum allowable pressure (PMA): 3,2MPa (464psig) (GTH12-45: 5,0MPa (725psig))
●Maximum allowable temperature (TMA): 400℃ (752℉) (GTH12-45: 425℃ (800℉))
●Minimum operating differential pressure (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.
●Maximum operating back pressure (PMOB): 90% of inlet-side pressure
*Available flange standards: ASME/JPI, DIN, JIS
*Customized size 1-1/4”, 1-1/2”, and 2” on request.
*ASTM material (WCB) and Stainless Steel (SCS13A) on request.
*Vertical installation on request.
*A version with the direction of the inlet and outlet reversed on request.
