| Model | Connection |
Max. operating pressure |
Max. operating differential pressure |
Max. operating temperature |
Adjustable range |
Standard set temperature |
Body material |
||||||
| Type | Size |
PMO (MPa) |
PMO (psig) |
(MPa) | (psig) |
TMO (℃) |
TMO (℉) |
(℃) | (℉) | (℃) | (℉) | ||

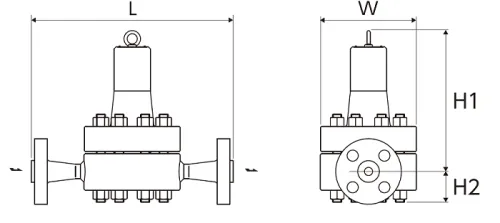

| TBH82-150F |
Flanged FF,RF |
1/2” | 15,0 | 2175 | 15,0 | 2175 | 550 | 1022 | 100 - 300 | 212 - 572 |
250 (at 10,5MPa) |
482 (at 1522psig) |
Cast steel WC9 |
| 3/4” | |||||||||||||
| 1” | |||||||||||||

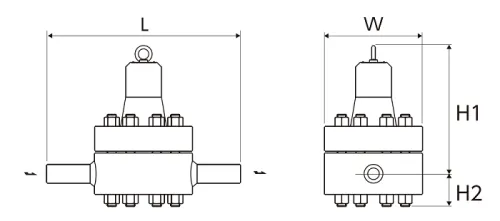

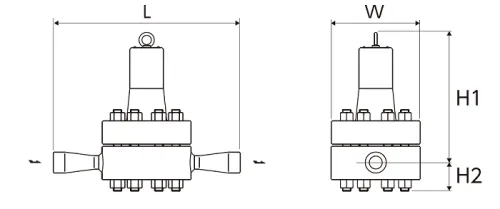

| TBH82-150W |
Socket Weld SW |
1/2” | |||||||||||
| 3/4” | |||||||||||||
| 1” | |||||||||||||
| TBH82-200F |
Flanged FF,RF |
1/2” | 20,0 | 2900 | 20,0 | 2900 | 100 - 320 | 212 - 608 |
270 (at 15,0MPa) |
518 (at 2175psig) |
|||
| 3/4” | |||||||||||||
| 1” | |||||||||||||
| TBH82-200W |
Socket Weld SW |
1/2” | |||||||||||
| 3/4” | |||||||||||||
| 1” | |||||||||||||
*Available flange standards: ASME/JPI 1500lb, 2500lb, DIN PN160, 250
*Socket weld standards: ASME 2500lb (TBH82-150W) ASME 4500lb (TBH82-200W), JPI 2500lb, JIS sch 160
●Maximum allowable pressure (PMA):
TBH82-150 : 25,0MPa (3625psig) (at 520℃ (968℉))
TBH82-200 : 25,0MPa (3625psig) (538℃ (1000℉))
●Maximum allowable temperature (TMA)
TBH82-150 : 593℃ (1099℉) (at 5,9MPa (856psig))
TBH82-200 : 593℃ (1099℉) (at 7,3MPa (1059psig))
●Minimum operating differential pressure (⊿PMN): 2.0MPa (290psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.
●In the absence of any particular instructions for the set temperature, the product is adjusted to the standard factory set temperature above for shipment.
●Please use a set temperature that is at least 30℃ (86℉) lower than the saturation temperature for the steam pressure in use.
*The body of the TBH82 can also be manufactured using chromium molybdenum forged alloy steel products A182 F22 and A182 F91.
